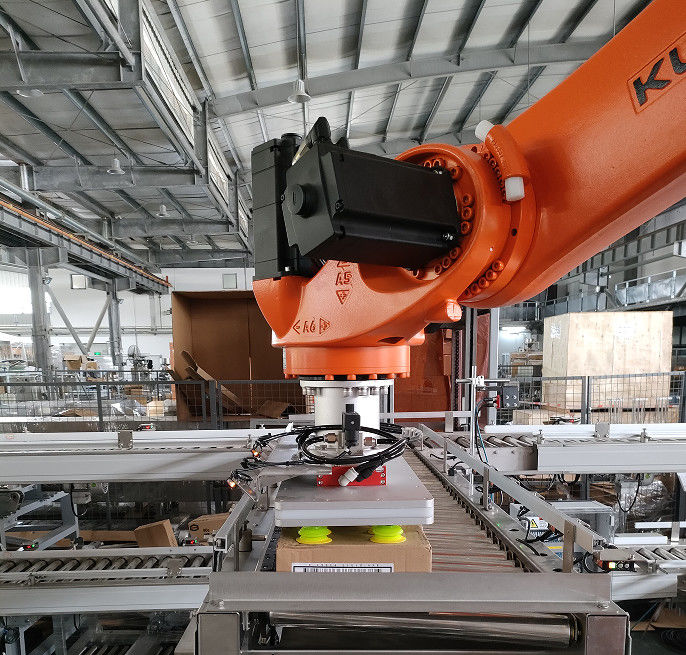

Vacuum Palletizing With Robot Simulation Program Industrial Robots

1.1 What is Vacuum Palletizing?

Vacuum palletizing is a process in industrial automation where robots equipped with vacuum grippers are used to stack and arrange products on pallets. The vacuum grippers create a suction force to pick up items of various shapes, sizes, and materials, such as boxes, bags, or containers, and place them precisely on pallets in an organized manner. This method offers several advantages over traditional palletizing techniques, including gentle handling of delicate products, high accuracy in placement, and the ability to handle a wide range of items.

1.2 Role of Robot Simulation Programs

Robot simulation programs play a crucial role in the vacuum palletizing process. These programs allow engineers and operators to create a virtual environment that mimics the real - world palletizing scenario. By using simulation, they can test and optimize the robot's movements, gripper configurations, and palletizing patterns before implementing them in the actual production line. This helps reduce setup time, minimize errors, and improve overall efficiency.

2.1 Enhanced Efficiency and Productivity

• Faster Cycle Times: With robot simulation, the palletizing process can be fine - tuned to achieve faster cycle times. The virtual environment enables engineers to analyze and optimize the robot's path planning, reducing the time taken to pick and place items on the pallet. This leads to increased production output and shorter lead times.

• Reduced Downtime: By simulating the palletizing process, potential issues such as collisions, gripper malfunctions, or incorrect placement can be identified and resolved before the robot is deployed in the production line. This minimizes downtime and ensures continuous operation.

2.2 Improved Accuracy and Quality

• Precise Placement: Robot simulation programs allow for precise control over the robot's movements and the placement of products on the pallet. Engineers can define exact coordinates and orientations for each item, ensuring that the pallet is stacked in a stable and organized manner. This improves the overall quality of the palletized load and reduces the risk of product damage during transportation.

• Consistency: The use of simulation ensures consistent palletizing results. The robot can repeat the same movements and placement patterns with high accuracy, eliminating human errors and variations in the palletizing process.

2.3 Cost - Effectiveness

• Reduced Material Waste: Accurate palletizing through simulation helps optimize the use of pallet space, reducing the need for additional packaging materials or oversized pallets. This leads to cost savings in terms of material procurement and storage.

• Lower Labor Costs: Automating the palletizing process with vacuum - equipped robots and simulation programs reduces the reliance on manual labor. This not only cuts down on labor costs but also frees up human resources for more value - added tasks.

2.4 Flexibility and Adaptability

• Handling Different Products: Vacuum grippers can handle a wide variety of products, and robot simulation programs allow for easy reconfiguration of the palletizing process to accommodate different item shapes, sizes, and weights. This makes the system highly flexible and adaptable to changing production requirements.

• Quick Changeovers: When switching between different product lines or palletizing patterns, simulation enables fast and efficient changeovers. Engineers can quickly modify the virtual model and test the new configuration before implementing it in the real world, reducing setup time and downtime.

• 3.1 Vacuum Grippers

• Types of Vacuum Grippers: There are different types of vacuum grippers available, such as flat suction cups, bellows suction cups, and foam - padded suction cups. Each type is designed to handle specific types of products. For example, flat suction cups are suitable for handling smooth and flat surfaces, while bellows suction cups can conform to curved or irregularly shaped objects.

• Vacuum Generation Systems: The vacuum generation system is responsible for creating the suction force required to pick up the products. It can be based on different technologies, including venturi vacuum generators, rotary vane vacuum pumps, and claw vacuum pumps. The choice of vacuum generation system depends on factors such as the required suction force, flow rate, and energy efficiency.

• 3.2 Industrial Robots

• Robot Types: Various types of industrial robots can be used for vacuum palletizing, including articulated robots, SCARA robots, and delta robots. Articulated robots offer a wide range of motion and are suitable for complex palletizing tasks. SCARA robots are known for their high speed and precision in two - dimensional movements, while delta robots are ideal for high - speed pick - and - place applications.

• Robot Controllers: The robot controller is the brain of the industrial robot, responsible for controlling its movements, gripping actions, and communication with other systems. Advanced robot controllers offer features such as real - time motion control, path planning, and collision avoidance.

• 3.3 Robot Simulation Software

• Simulation Features: Robot simulation software provides a range of features for modeling and simulating the vacuum palletizing process. These include 3D modeling of the robot, workcell, and products, kinematic and dynamic simulation of the robot's movements, and collision detection. Some software also offers offline programming capabilities, allowing engineers to create and test robot programs without interrupting the production process.

• Integration with Other Systems: The simulation software should be able to integrate with other systems such as the robot controller, PLCs (Programmable Logic Controllers), and vision systems. This enables seamless communication and coordination between different components of the palletizing system.

Technical Parameters:

Support and Services:

Our Robot Spare Parts product is backed by comprehensive technical support and services to ensure that our customers have the best possible experience with our products.

Our technical support team is available to answer any questions or concerns you may have about our products or their installation. We also offer repair and maintenance services to ensure that your Robot Spare Parts product remains in optimal condition over time.

In addition to our technical support and maintenance services, we also provide training and educational resources to help our customers get the most out of their Robot Spare Parts product. Our goal is to provide a complete solution for all of your robot spare parts needs.

Packing and Shipping:

Product Packaging:

• The robot spare parts will be securely packaged in a sturdy cardboard box.
• Each part will be individually wrapped and labeled for easy identification.
• The box will be sealed with strong packing tape to ensure safe transit.

Shipping:

• Our standard shipping method is ground shipping via a reputable courier service.
• Shipping costs will be calculated at checkout based on the destination and weight of the package.
• We also offer expedited shipping options for an additional fee.
• Once your order is shipped, you will receive a tracking number to monitor the delivery status.

FAQ:

*Q:Why are we?

A:Our company works robot industry over fifteen years. Programming robot inclusive KUKA ,ABB,YASKAWA,FANUC,ESTUN(Chinese ROBOT ),EFORT(Chinese robot). the business involved simulation,programming,service after warranty period.

*Q:How about our service concept?

A:We keep on phone open all day. Stand in customer view to provide rationalization solution and robot selection.

*Q:What products can we offer?

A:robot, energy supply for robot, linear for robot. Training for robot. Gripper for handling.

*Q:Why you purchase from us?

A:You don’t worry about after-sales problem to cooperation with us.

About us

Companies in the "customer first, quality first, the user first" purpose, we will as always Warm and sincere service for all users, friends and customers, create brilliant tomorrow. Our main customers are Baosteel, INO,Volkswagen,Geely and so on. Over fifteen years experience in the robot industry. Our engineers can design solution,simulation,program and troubleshooting. So if you have any issue of robot. Call us any time. We will try our best to solve the problem. The other advantage is after-sales service,we have robot spare parts in stockroom. We can response promptly to help you resolve robot fault. We also have robot training. The course include programming, electric, mechanic and expert programming. So welcome to join our college.
